Cable Assembly
Huba offers an extensive lineup of Test cable components with excellent electric properties and mechanical stability.
millimeter-wave cable assembly frequency range is DC 67GHz,and the connectors used include SMPseries,2.92series,2.4series,1.85seriesand so on. Millimeter wave cable assemblies include semi-rigid, semi-flexible cables and flexible cables. Semi-rigid cable assembly with high shielding efficiency, and it can bend into various shapes, easy to fix, can be used in harsh environments.
Product Portfolio
| Adapted connector | Frequency (MHz) | Cable outer diameter (mm) | Insertion loss (cable) Max (dB/m) | VSWR Max | Amplitude stability Max (dB) | Phase stability Max (Degrees) |
|---|---|---|---|---|---|---|
| 3.5(Male) 3.5(Female) | 0 ~ 26,500 | 7.6 | 1.27@18GHz | 1.25@26.5GHz | ±0.04 | ±3 |
| 2.92(Male) 2.92(Female) | 0 ~ 40,000 | 6.1 | 2.92@40GHz | 1.25@40GHz | ±0.05 | ±5 |
| 2.4(Male) 2.4(Female) | 0 ~ 50,000 | 6.1 | 2.92@40GHz | 1.3@50GHz | ±0.05 | ±5 |
| 1.85(Male) 1.85(Female) | 0 ~ 67,000 | 4.7 | 5.93@67GHz | 1.3@67GHz | ±0.05 | ±5 |
| 1.0(Male) | 0 ~ 110,000 | 3.9 | 13.2@110GHz | 1.35@110GHz | ±0.07 | ±7 |
Products Description

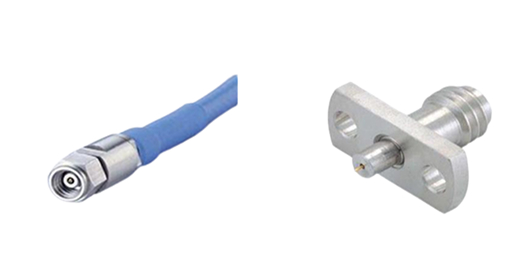

MW Cable
Application is Satellite communication, Test adapter.
Feature is High Frequency/ Precise performance；
Main SPEC

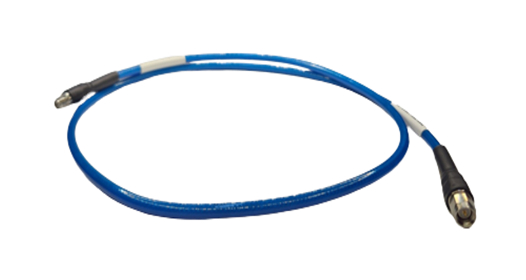

Test cable
The testing component's connection interface includes SMA, precision N-type are available.

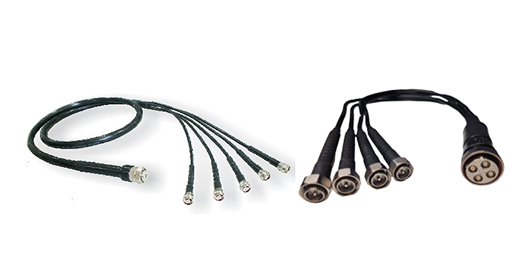

Multi-Ports Solution
Convenient for assembly and repair at site
Less cable and connector lower down the risk of misconnection.
